Pictured below is another of our solar water heating pump controllers – this time with digital waterproof temperature sensors (DS18B20), and an LCD to show the measured temperatures of the solar heating panel and swimming pool as well as system status and for the user to programme in the settings.

As this controller is to be used in sunny Australia it includes a pre-programmed maximum temperature override to prevent the swimming pool from getting too hot. When the pool is measured to 31 degrees Celcius or hotter, the pump will not to be turned on again until the pool temperature has fallen to 28 degrees.

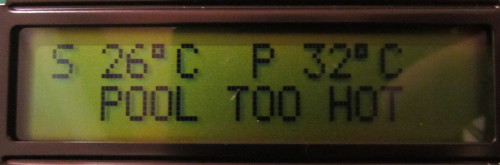

Pictured above is the LCD showing the solar panel temperature of 26 degrees C, and the pool at 32 degrees C. Therefore the pool is too hot and even when the solar panel temperature increases, the pump will not turn on.

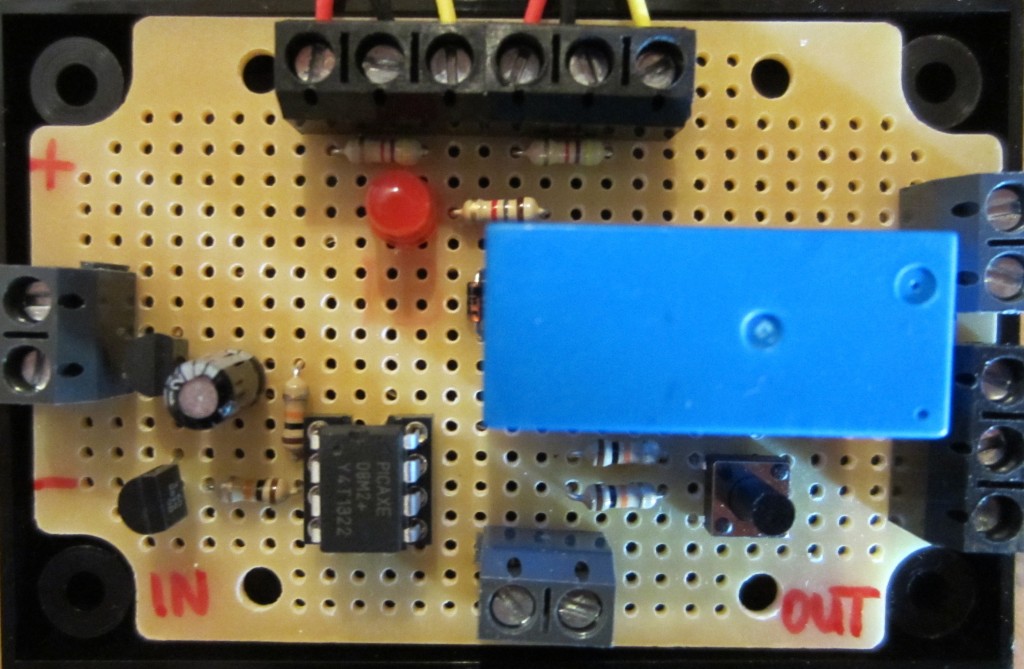

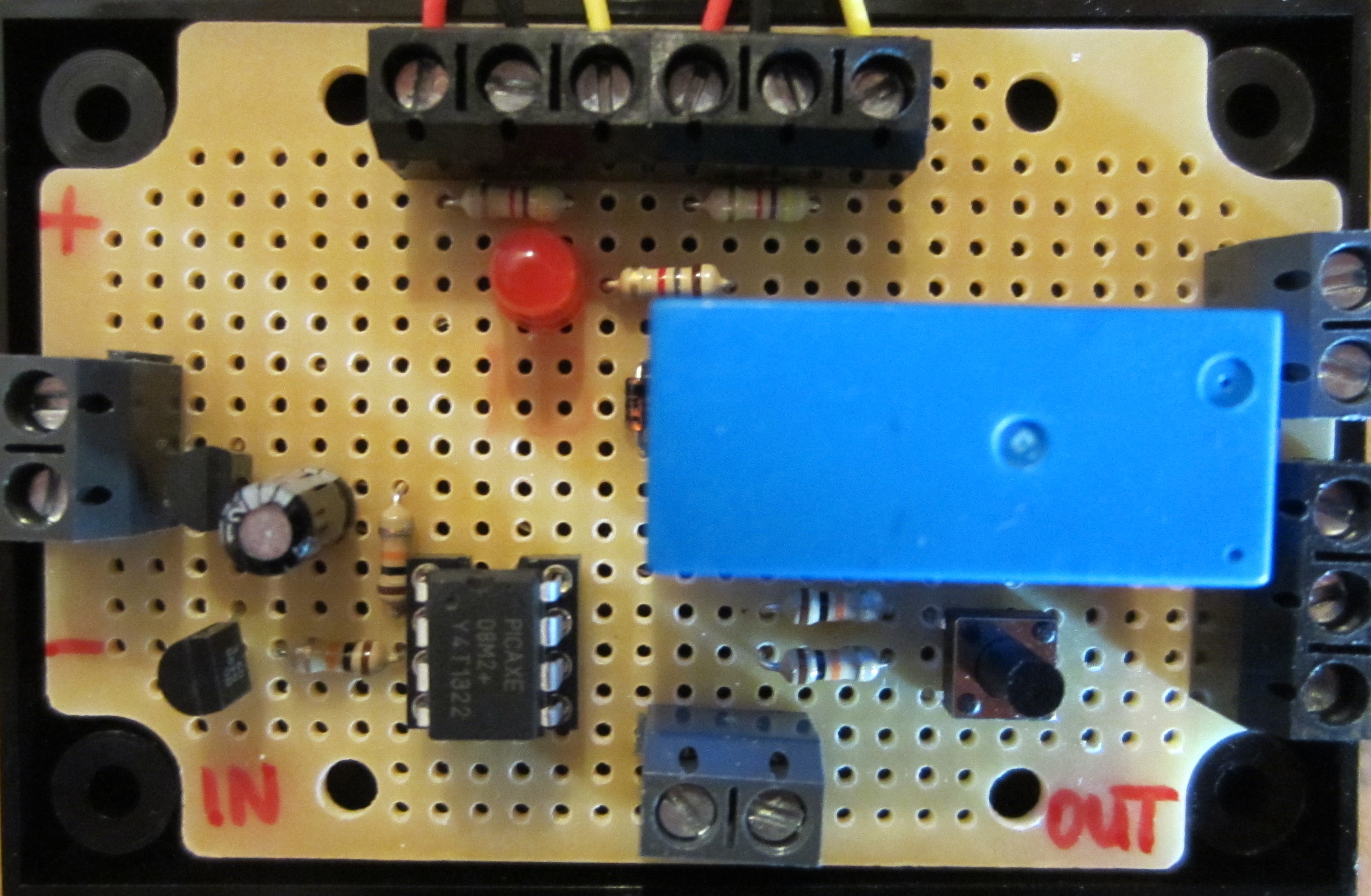

At the bottom of the circuit board is a pair of screw in terminals which will be connected to the output from a 12V programmable digital timer. In the winter, the customer for this controller wants to be able to automatically run the pump at the same time each day for a certain time just to circulate water around the system.

If you need a solar water heating controller for any application, with or without a display, email neil@reuk.co.uk with details of your exact requirements.
