Buy 12 Volt Regulator with Fuse and Switch Terminals


REUK Shop > Voltage Regulators

Supply a fixed 12.0 Volt DC to your devices (up to 1 Amp output). Includes fitted 1A fuse, 2 spare fuses, and terminals for connection of a switch

Buy of 12 VOLT REGULATOR WITH FUSE AND SWITCH TERMINALS.
(1-5: £7.29 each, 5+: £6.99 each)

12 VOLT REGULATOR WITH FUSE AND SWITCH TERMINALS. Supply a fixed 12.0 Volt DC to your devices (up to 1 Amp output). Includes fitted 1A fuse, 2 spare fuses, and terminals for connection of a switch

Additional Information

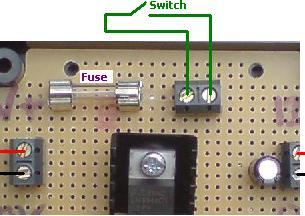

This version of the REUK 1 Amp 12 Volt Regulator is supplied with a fuseholder fitted to the circuit board, a 1 Amp fuse fitted, and a further two 1 Amp fuses so that you have spares to hand when/if you need them. It also has screw-in terminals which you can use to connect a switch up to the regulator. Since the regulator draws a current of around 20mA (= 0.020 Amps) even when it is not powering anything, the incorporation of the switch enables you to manually cut the power to the regulator so that stored battery power is not wasted when not needed.

Click here if you need to purchase a Toggle Switch (1.5A rated) to go with this regulator.

Mini 12 Volt Regulator with Fuse and Switch Terminals

We also now sell a miniaturised version of the this regulator which is just 45mm x 45mm x 20mm in size. It is priced at £6.99. Click here now to find out more and/or to purchase this MINI 12V Regulator with Fuse and Switch Terminals from the REUK Shop.

mini 12V regulator with fuse and fitted terminals
